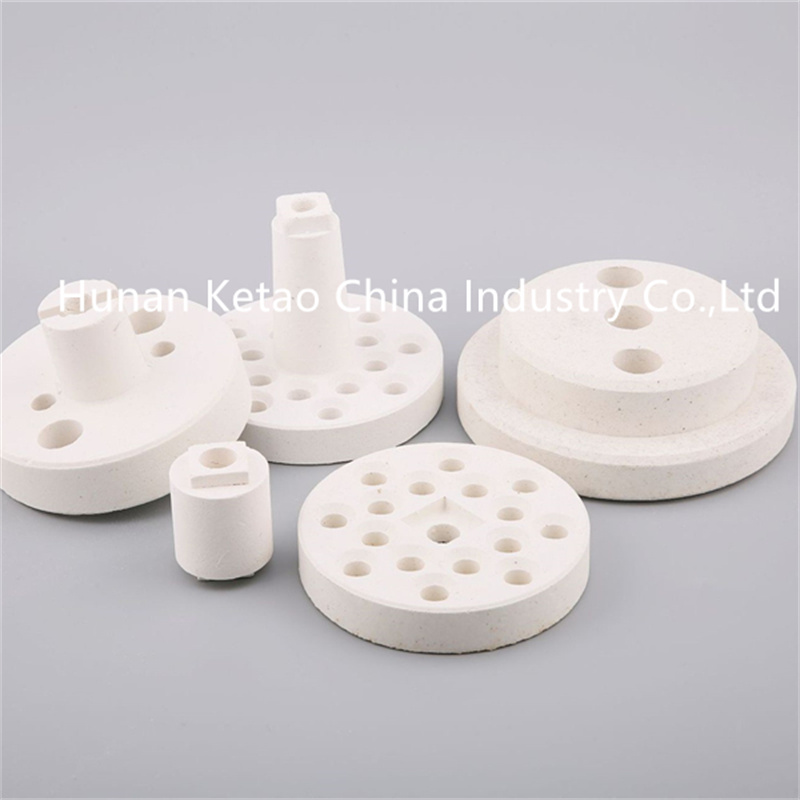

Mullite Ceramic Part

Mullite ceramic parts are made from a composite material of alumina and silica, known as mullite. This material offers a combination of high strength, thermal stability, and excellent resistance to thermal shock.

Inquire
Product Description

Features & Benefits

  • High strength: Mullite ceramic parts have high mechanical strength and hardness, making them suitable for use in harsh environments and applications.
  • Thermal stability: Mullite ceramic parts have a high melting point and can withstand high temperatures without degrading or losing their properties.
  • Excellent resistance to thermal shock: Mullite ceramic parts have low thermal expansion and can withstand rapid temperature changes without cracking or breaking.
  • Corrosion resistance: Mullite ceramic parts are highly resistant to chemical attack and can withstand exposure to corrosive environments.

Markets & Applications

  • Aerospace: Mullite ceramic parts are used in aerospace applications, such as engine components and heat shields, due to their high strength and thermal stability.
  • Chemical processing: Mullite ceramic parts are used in chemical processing applications, such as reactor vessels and heat exchangers, due to their resistance to corrosion and high temperatures.
  • Metallurgy: Mullite ceramic parts are used in metallurgical applications, such as furnace linings and crucibles, due to their high thermal stability and resistance to thermal shock.
  • Electronics: Mullite ceramic parts are used in electronic applications, such as insulators and substrates, due to their high strength, thermal stability, and electrical insulation properties.
Parameter Value
Composition Al6Si2O13
Density 2.7-2.9 g/cm³
Maximum Service Temperature 1600-1800°C
Thermal Conductivity 3.0-4.0 W/(m*K)
Thermal Expansion Coefficient 4.5-6.5×10^-6/K
Hardness 7-8 on the Mohs scale
Flexural Strength 150-300 MPa
Compressive Strength 200-800 MPa
Dielectric Constant 6.5-7.5
